Sleeps 4
-
3 Slides
-
Rear Living AreaOutdoor Kitchen
-
36ft Long
-
11,298 lbs

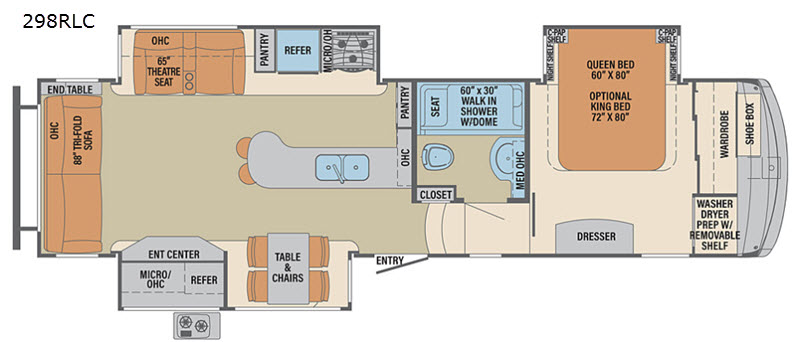

298RLC Floorplan
Specifications
Sleeps | 4 | Slides | 3 |
Length | 36 ft 3 in | Ext Width | 8 ft 5 in |
Ext Height | 12 ft 4 in | Int Height | 6 ft 6 in |
Hitch Weight | 2269 lbs | GVWR | 14298 lbs |
Dry Weight | 11298 lbs | Cargo Capacity | 3000 lbs |
Fresh Water Capacity | 75 gals | Grey Water Capacity | 71 gals |
Black Water Capacity | 39 gals | Tire Size | 16" |
Furnace BTU | 35000 btu | Available Beds | Queen |
Refrigerator Size | 8 cu ft | Cooktop Burners | 3 |
Shower Size | 60" x 30" | Number of Awnings | 1 |
Axle Weight | 7000 lbs | LP Tank Capacity | 30 lbs |
Water Heater Capacity | 10 gal | Water Heater Type | Quick Recovery |
AC BTU | 15000 btu | TV Info | LR 50" LED TV |
Awning Info | 16' Power with LED Lighting | Axle Count | 2 |
Washer/Dryer Available | Yes | Number of LP Tanks | 2 |
Shower Type | Shower w/Seat | VIN | 4X4FCMF23K6009688 |
Description
Palomino Columbus Compass fifth wheel 298RLC highlights:
- Kitchen Peninsula
- 88" Tri-Fold Sofa
- Free Standing Dinette
- Two Pantries
- Rear Living
- Exterior Kitchen
Luxury and convenience can be found in every detail in this fifth wheel. From the front master bedroom with a pillowtop mattress and plenty of storage to the combined living and kitchen area with dual slide outs. You can entertain other campers and invite guests to stay the night on the furniture. Your friends will enjoy using your walk-in shower with a seat, and relaxing on the power theatre seating while charging their cellphone in the USB port. When you want to carry the party outside, the exterior kitchen comes in handy for cooking meals outdoors. What are you waiting for, choose this model today!
With any Columbus Compass fifth wheel by Palomino you can enjoy a sturdy foundation along with a few of the finer things while exploring the countryside. Beginning with the all welded aluminum frame superstructure to the 8'5" wide body, and comfortable towing with the E-Z Flex Dexter axles and E-Z Lube axles with Nev-R-Adjust brakes, you will know you are going in the right direction. Inside you will appreciate the central vacuum system for easy clean up, the residential microwave for making quick meals and reheating leftovers, and the many mandatory features in the Compass package. Come see why owning a Columbus Compass fifth wheel is the correct choice for you!
Features
Standard Features (2019)
Construction
- 101" wide body
- All welded aluminum frame superstructure
- 5/8" tongue and groove plywood floor
- R-40 Residential 5" radius wood truss roof
- 6'6" height slides (living area slides)
- (5) heat ducts out of traffic areas
- Snap-in ceiling molding - no staples or tape
- 12V heat pads on all holding tanks
- R-38 floor insulation
- R-40 roof insulation
- R-11 sidewall insulation
- Vacuum Bonded Walls
- E-Z Flex Dexter Axles E-Z Lube Axles with Nev-R-Adjust brakes
- 16" wheels with nitro fill tires
Interior
- Large frameless tinted windows throughout
- Hidden hinges
- Dovetail constructed reinforced doors and drawers with upgraded hardware
- Upgraded crack/mold/mildew-resistant flooring
- Upgrade true solid surface countertops bath/kitchen
- LED lights
- Residential crown molding throughout unit
- Solid wood slide fascia
- 24 ounce carpet
- Central vacuum system
- Large entry closet for jacket/shoe storage
Exterior
- Slam latches on all storage doors
- Magnetic compartment door holds
- 2-tone aluminum wheels
- Painted fiberglass front cap
- Heated utility convenience center
- Black tank flush
- Outside AM/FM/Bluetooth receiver with USB port
- Electric rear stabilizer jacks
- Outside shower
- Quick battery disconnect
- Power awning with LED lighting
- 7000 lb. axles
- Crank down spare tire
- Storage rack in front compartment
Furniture
- Power w/USB charging residential theater seating w/storage
- Bi-fold 80” Sleeper sofa (per model)
- Residential high end dining chairs with storage
Bedroom
- Laundry hamper (most models)
- Pillow top mattress
- French mirrored sliding closet doors
- High end bedspread/pillows
Appliances
- Upgrade 8 cu. ft. refrigerator with adjustable temp settings and raised panel doors
- 50" LED TV with sound bar and DVD player
- 10 gal. water heater with quick recovery
- Washer/dryer prep
- Full system water purifier
- 30" residential microwave
- 15,000 BTU high output Coleman Serenity A/C
- 35,000 BTU furnace
Kitchen
- Storage for sink covers (some models)
- Recessed solid surface sink covers
- Residential under counter storage
- Recessed glass range cover
- Residential glass backsplash
- Additional lighting above sink area
- Single lever faucet w/pull out sprayer
- Trash can with dedicated storage (some models)
Bathroom
- 60" x 30" 2-piece surround
- 3-speed power vent
- Porcelain toilet
Options
- 13,500 BTU Coleman Serenity bedroom A/C (std. 386)
- Mor/Ryde pin box
- Electric fireplace
- Keyless entry door lock
- MCD night roller shades
- Bedroom Maxx Fan w/Rain HOOD (N/A w/Bedroom A/C)
- Kitchen Maxx Fan w/Rain HOOD (forced 386FK)
- 20 cu. ft. residential refrigerator with inverter
- 18 cu. ft gas electric refrigerator
- King bed
- Memory Foam Mattress
- Wood-look floor
- Tile-look floor
- Wireless back up camera
- Metal wrapped awning
- Goodyear H rated tires with upgraded rims
- 200 Watt Solar Panel (installed) w/2 Batteries
- Dyson Air Purification System
Compass Package (Mandatory)
- Full System Water Purifier
- 50" LED TV
- Sound Bar
- Battery disconnect
- AM/FM/iPod/CD with 2 Exterior Speakers
- Cherry hardwood slide out fascia
- 2 tone aluminum wheels
- G-rated Tires
- 12V heat pads on all holding tanks
- LED awning lights
- Syphon 360 vent covers
- Pleated day/night shades
- 4 step entry
- Friction hinge entry door
- Go Power Solar Prep
- Pull down faucet
Please see us for a complete list of features and available options!
All standard features and specifications are subject to change.
